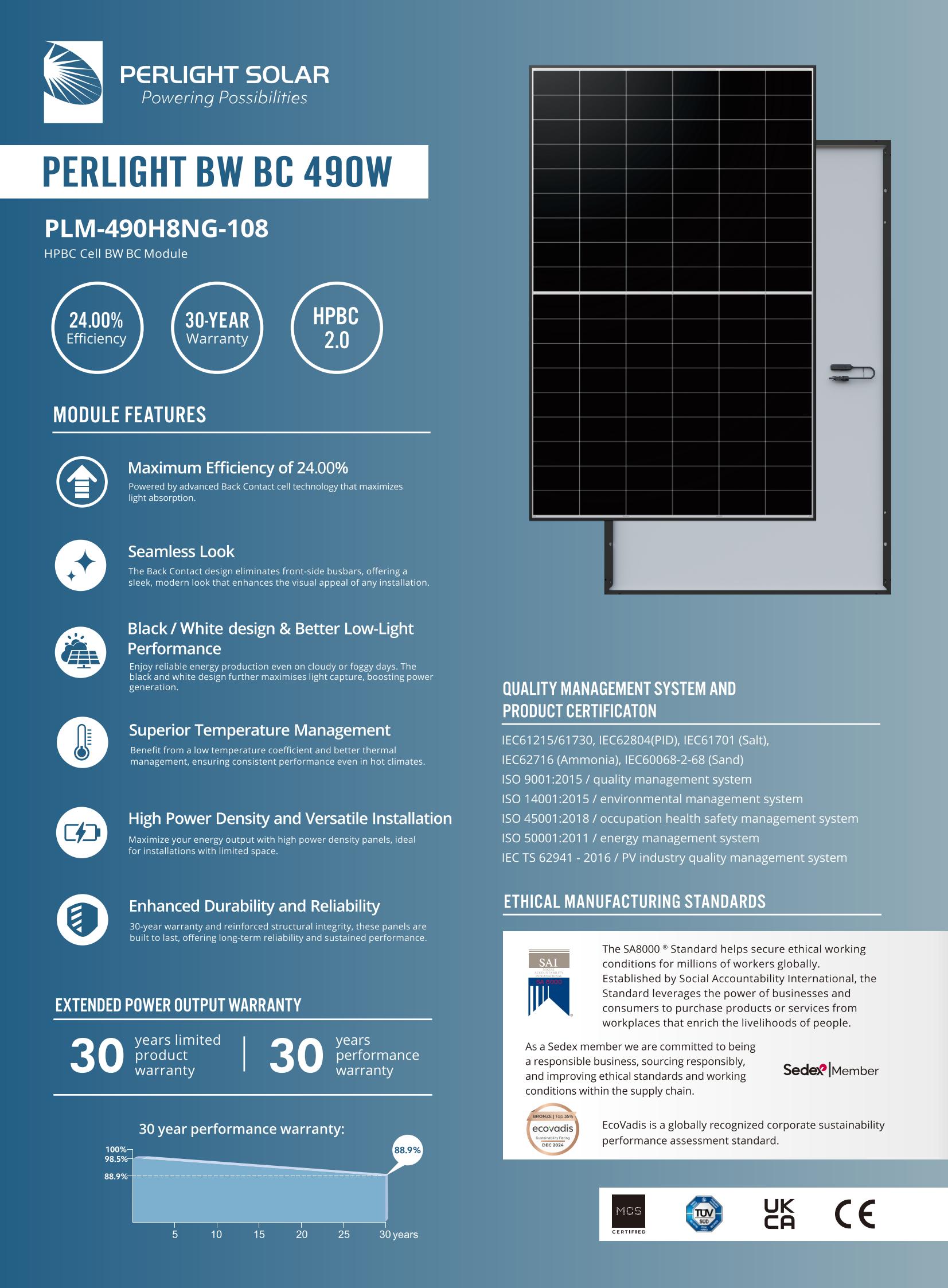

490W Single Glass HPBC Black Frame

PLM-490H8NG-108 BW BC Series

HBPC Half-Cell Module, Seamless look, Power Range 475W-490W,1800x1134x30mm, Single Glass,3.2mm Coated Tempered Glass, Black Anodized Aluminium Alloy

Quantity

粤ICP备12019139号粤公网安备44030502001115号

Sitemap

PERLIGHT'S SOLAR ENERGY SOLUTIONS

POWER A SUSTAINABLE FUTURE WITH

HOME

WESTECH SOLAR (UK)LTD

T:+44(0)1865 682 584

E:sales@westech-solar.co.uk

A: Unit 1, Bobby Fryer Close, Garsington Road, Oxford, UK OX4 6ZN

T:+86 (0)576 864 72 818

M:+86(0)1386 764 8676

E:enquiry@perlight.com

A: 48 Oufeng Road, Muyu Administration District, Wenling, Zhejiang, 317521, China

PERLIGHT MANUFACTORY

PERLIGHT SOLAR UK & EU SALES & CUSTOMER CENTRE

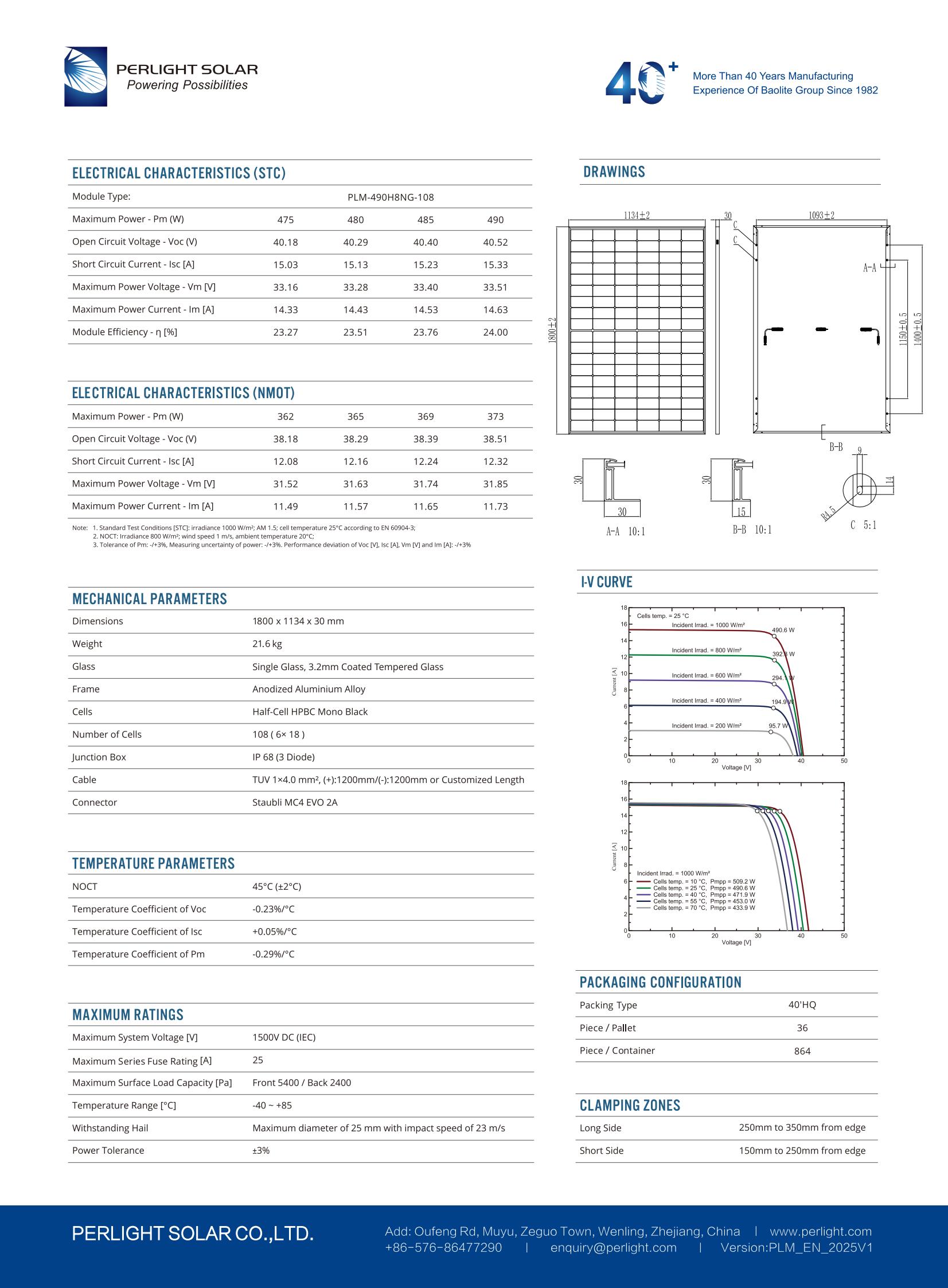

MECHANICAL PARAMETERS
Dimensions	1800×1134×30 mm
Weight	21.6 kg
Glass	Single Glass,3.2mm Coated Tempered Glass
Frame	Anodized Aluminium Alloy
Cells	Half-Cell HPBC Mono Black
Number of Cells	108(6×18)
Junction Box	IP 68(3 Diode)
Cable	TUV 1×4.0 mm²,(+):1200mm/(-):1200mm or Customized Length
Connector	Staubli MC4 EVO 2A

ELECTRICAL CHARACTERISTICS(STC)
Module Type:	PLM-490H8NG-108
Maximum Power -Pm (W)	475	480	485	490
Open Circuit Voltage-Voc(V)	40.18	40.29	40.40	40.52
Short Circuit Current-Isc [A]	15.03	15.13	15.23	15.33
Maximum Power Voltage-Vm [V]	33.16	33.28	33.40	33.51
Maximum Power Current-Im [A]	14.33	14.43	14.53	14.63
Module Efficiency-η[%]	23.27	23.51	23.76	24.00
