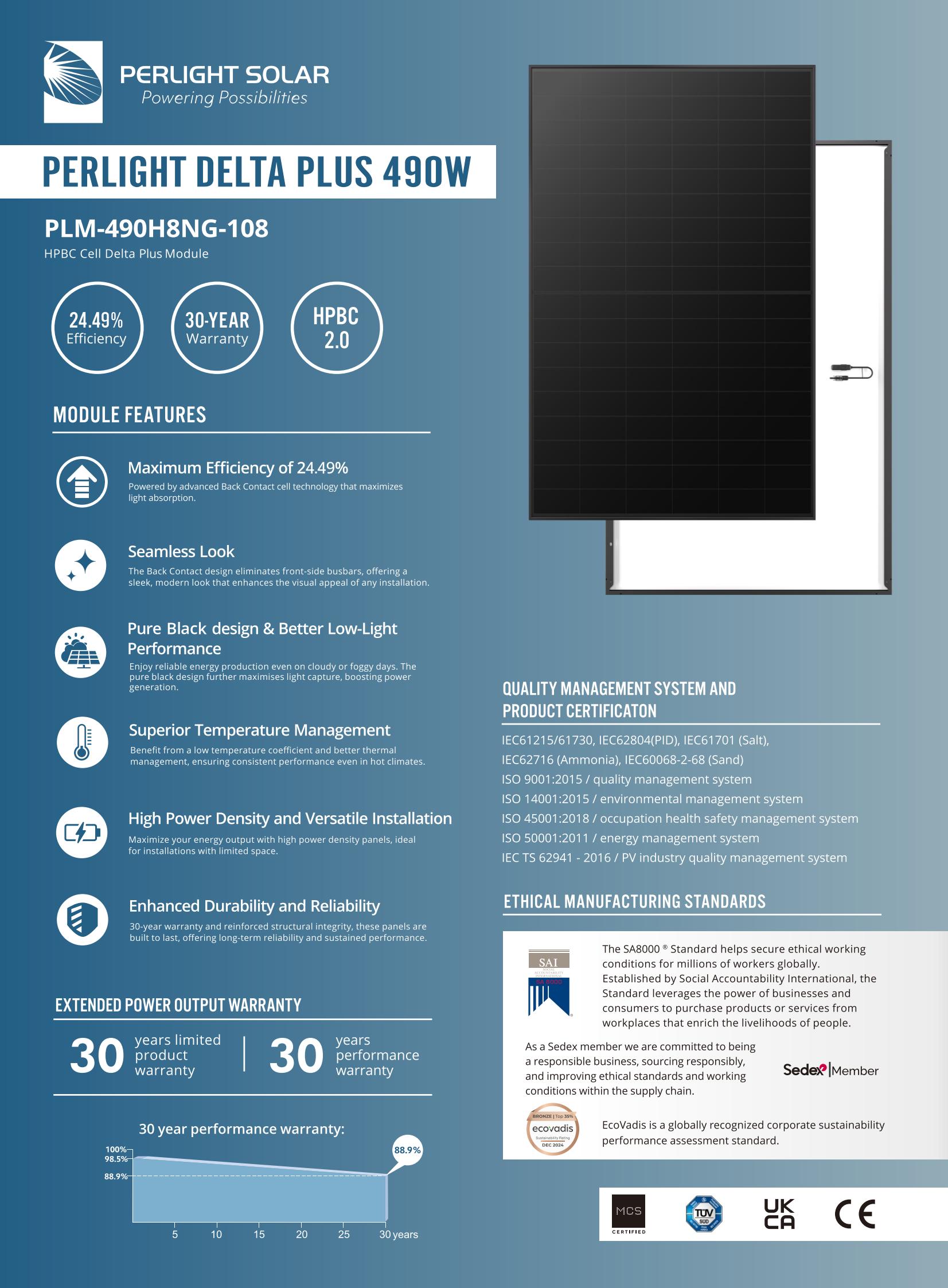

490W Single Glass HPBC
PLM-490H8NG-108 Plus Delta Plus Series
HBPC Half-Cell Module, Seamless look, Power Range 475W-500W,1800x1134x30mm, Single Glass,3.2mm Coated Tempered Glass, Black Anodized Aluminium Alloy
Quantity


Scan the QR code to visit the mobile website

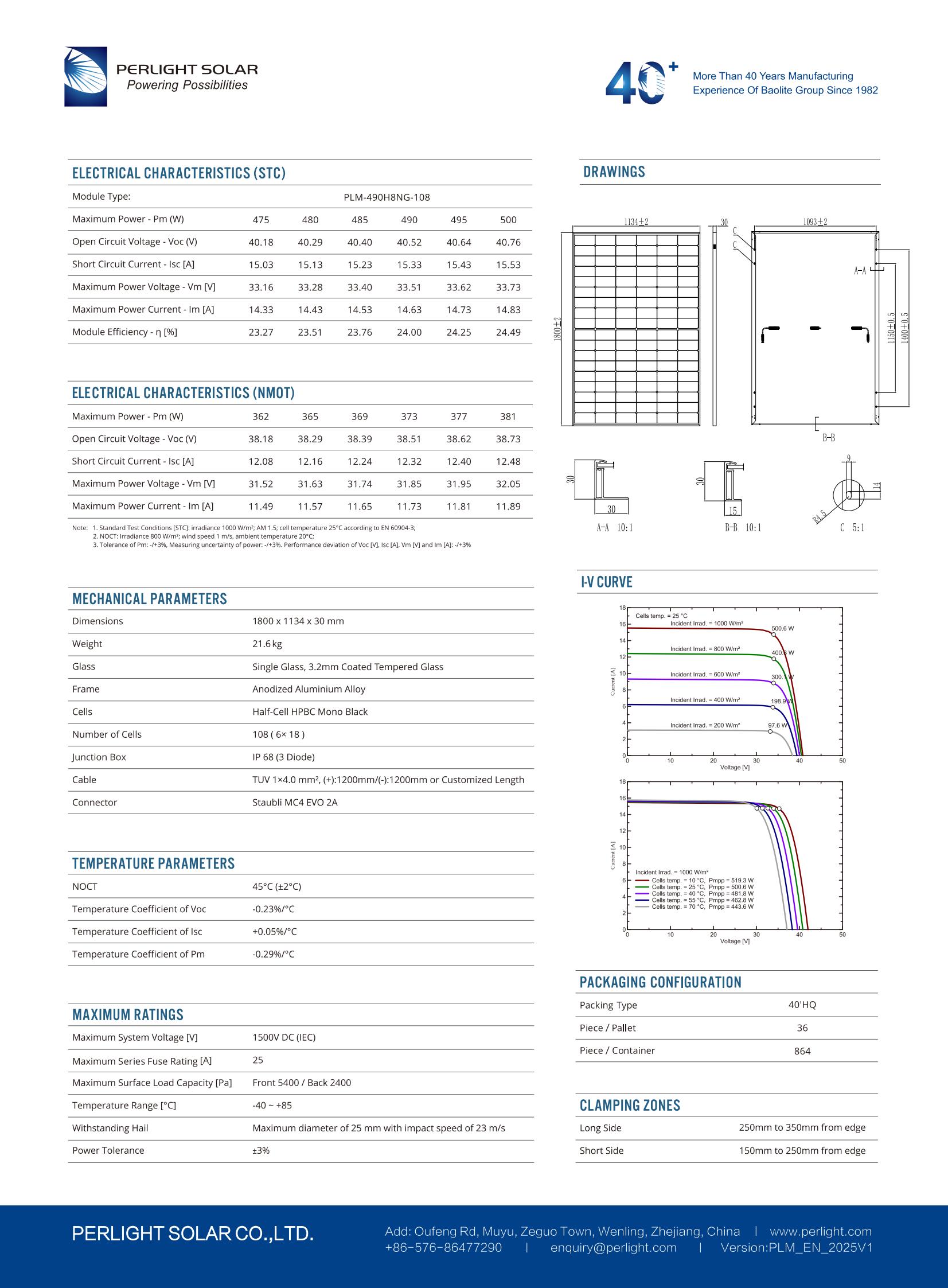

| MECHANICAL PARAMETERS | |
| Dimensions | 1800×1134×30 mm |
| Weight | 21.6kg |
| Glass | Single Glass,3.2mm Coated Tempered Glass |
| Frame | Anodized Aluminium Alloy |
| Cells | Half-Cell HPBC Mono Black |
| Number of Cells | 108(6×18) |
| Junction Box | IP 68(3 Diode) |
| Cable | TUV 1×4.0 mm²,(+):1200mm/(-):1200mm or Customized Length |
| Connector | Staubli MC4 EVO 2A |
| ELECTRICAL CHARACTERISTICS (STC) | ||||||
| Module Type: PLM-490H8NG-108 | ||||||
| Maximum Power-Pm (W) | 475 | 480 | 485 | 490 | 495 | 500 |
| Open Circuit Voltage-Voc(V) | 40.18 | 40.29 | 40.40 | 40.52 | 40.64 | 40.76 |
| Short Circuit Current-Isc [A] | 15.03 | 15.13 | 15.23 | 15.33 | 15.43 | 15.53 |
| Maximum Power Voltage-Vm [V] | 33.16 | 33.28 | 33.40 | 33.51 | 33.62 | 33.73 |
| Maximum Power Current-Im [A] | 14.33 | 14.43 | 14.53 | 14.63 | 14.73 | 14.83 |
| Module Efficiency-η[%] | 23.27 | 23.51 | 23.76 | 24.00 | 24.25 | 24.49 |
| PACKAGING CONFIGURATION | |
| Packing Type | 40'HQ |
| Piece/Pallet | 36 |
| Piece/Container | 864 |
