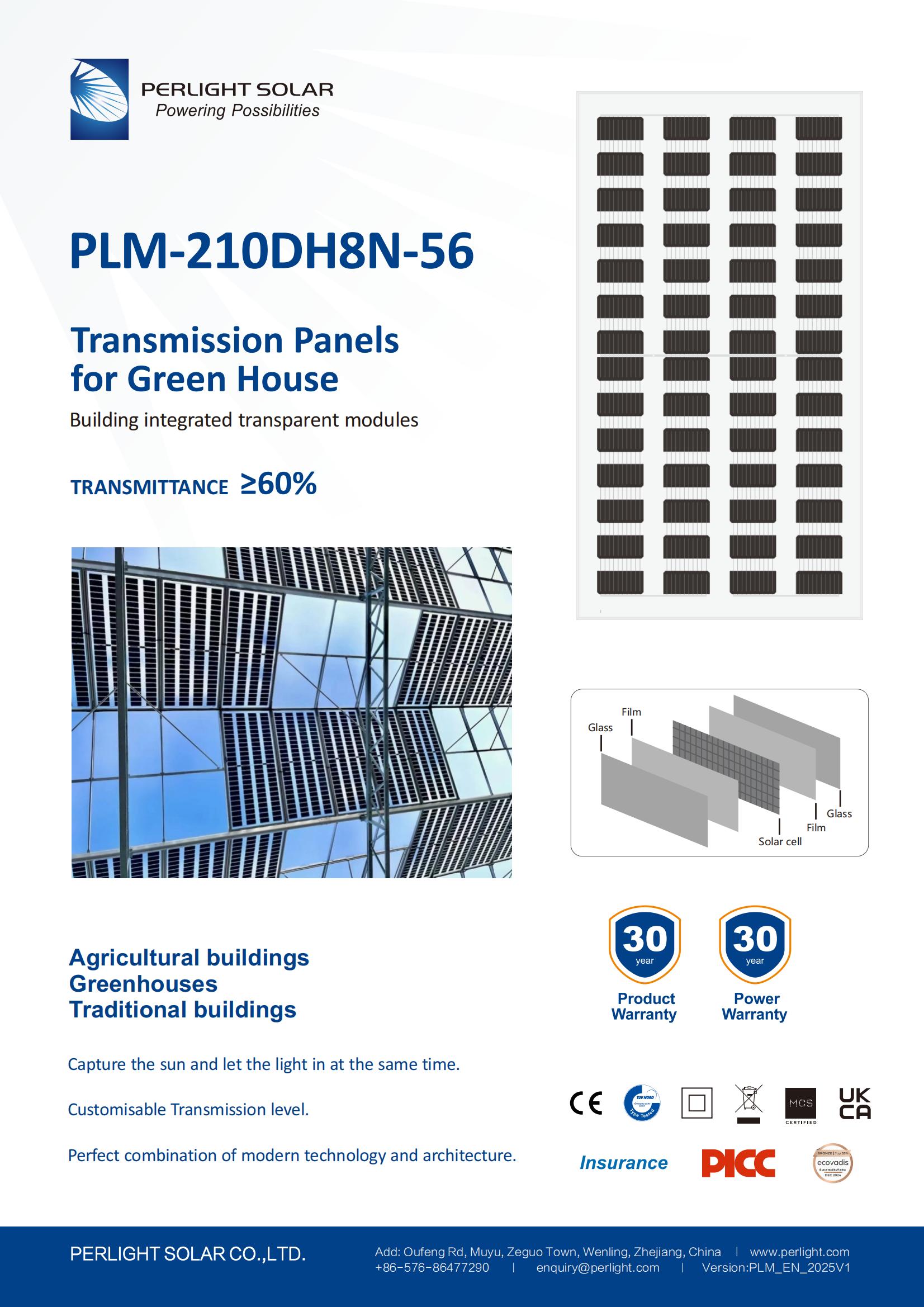

210W Double Glass Transparent Green House
PLM-210DH8N-56
Building integrated transparent modules, TRANSMITTANCE ≥60%, Capture the sun and let the light in at the same time,Customisable Transmission level.
Quantity


Scan the QR code to visit the mobile website

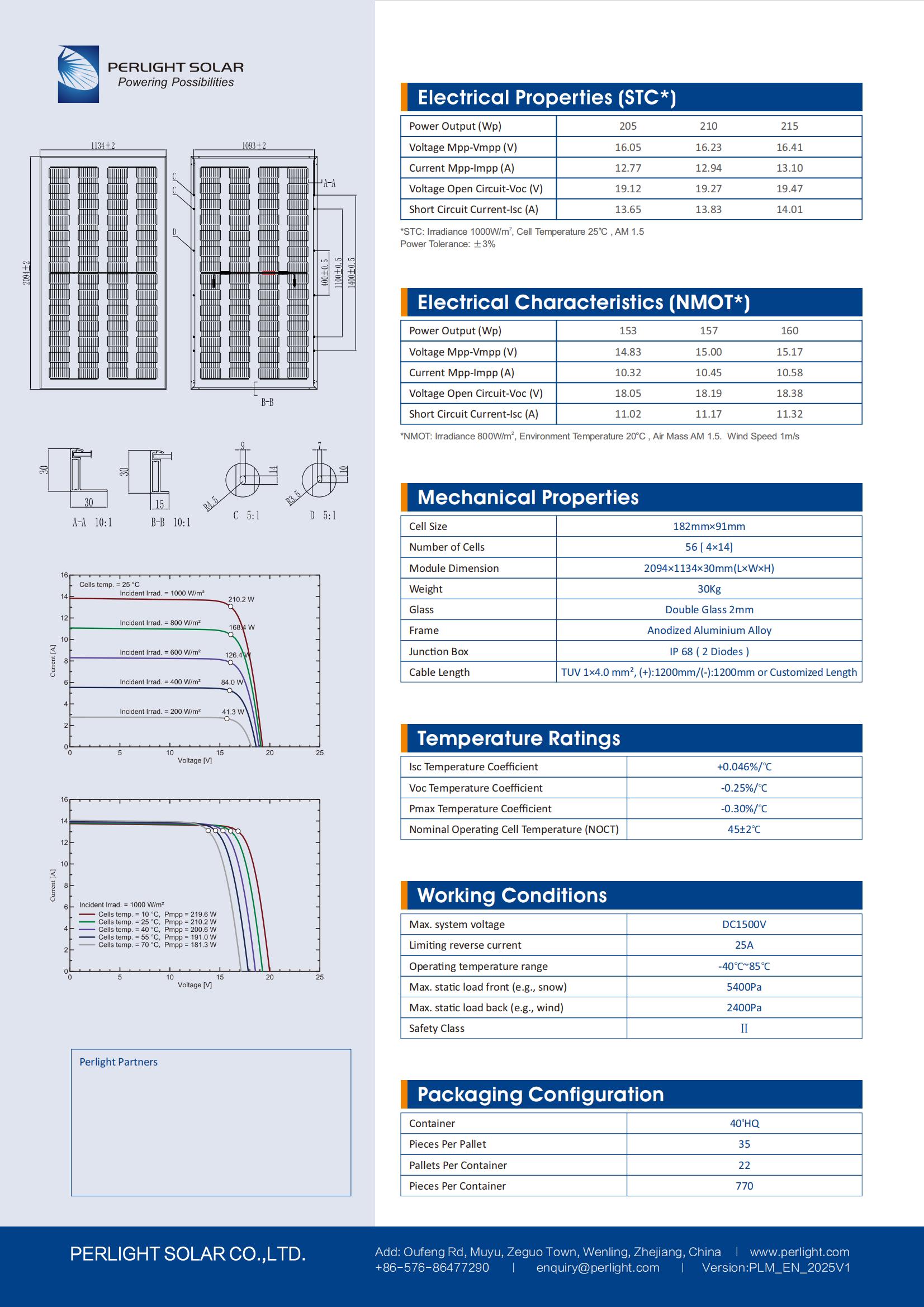

| Mechanical Properties | |
| Cell Size | 182mm×91mm |
| Number of Cells | 56[4×14] |
| Module Dimension | 2094×1134×30mm(L×W×H) |
| Weight | 30Kg |
| Glass | Double Glass 2mm |
| Frame | Anodized Aluminium Alloy |
| Junction Box | IP68(2 Diodes) |
| Cable Length | TUV1×4.0 mm²,(+):1200mm/(-):1200mm or Customized Length |
| Packaging Configuration | ||
| Container | 40'HQ | |
| Pieces Per Pallet | 35 | |
| Pallets Per Container | 22 | |
| Pieces Per Container | 770 | |
| Electrical Properties (STC*) | ||
| Power Output (Wp) | 205 210 215 | |
| Voltage Mpp-Vmpp (V) | 16.05 16.23 16.41 | |
| Current Mpp-Impp (A) | 12.77 12.94 13.10 | |
| Voltage Open Circuit-Voc(V) | 19.12 19.27 19.47 | |
| Short Circuit Current-Isc(A) | 13.65 13.83 14.01 | |
| *STC:Irradiance 1000W/m²,CellTemperature 25℃,AM 1.5 Power Tolerance:±3% |
||
