Customized PVB Double Glass Series
Size: 1200*600*7mm

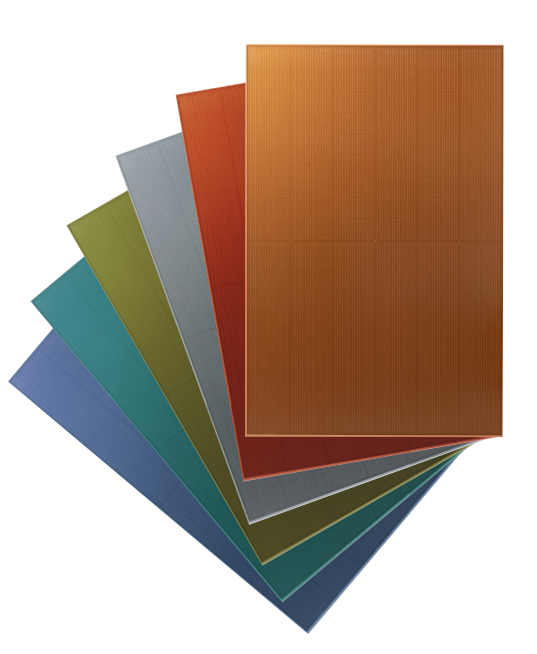

Perlight Solar Standard Customized Colored Solar Facade Panel
| Model | Max Power (Wp) | Dimension (L x W x H) | Glass Type | Cell Type | Color Options |
| Solar Facade-standard | 130 | 1200x600 x 7 mm | 3.2mm low-iron tempered glass | PERC (158.75/5 Shingled) | custom |
| Solar Facade-custom | custom | custom | 2mm-6mm low-iron tempered/ ultraclear float/acid-etched colored ceramc/digital print glass | G1/M6/M10/G12 PERC/TOPCON/BC | custom |
Detailed Specifications:
Max Power (Wp): Depending on the model, the maximum power ranges from 50 Wp to 400 Wp, suitable for various residential and commercial installation needs.
Dimensions: All standard models have the same dimensions of 1200 x 600 x 7 mm, fitting standard installation frames and spaces, also available for custom size and color and pattern requests.
Glass Type: The double glass design enhances the panel's durability and mechanical load resistance. It uses low-iron tempered glass, providing better light transmittance and corrosion resistance.
Cell Type: The panels are produced with various cell technologies, including PERC (Passivated Emitter and Rear Cell), HJT (Heterojunction Technology), and TOPCon (Tunnel Oxide Passivated Contact), ensuring high efficiency and long lifespan.

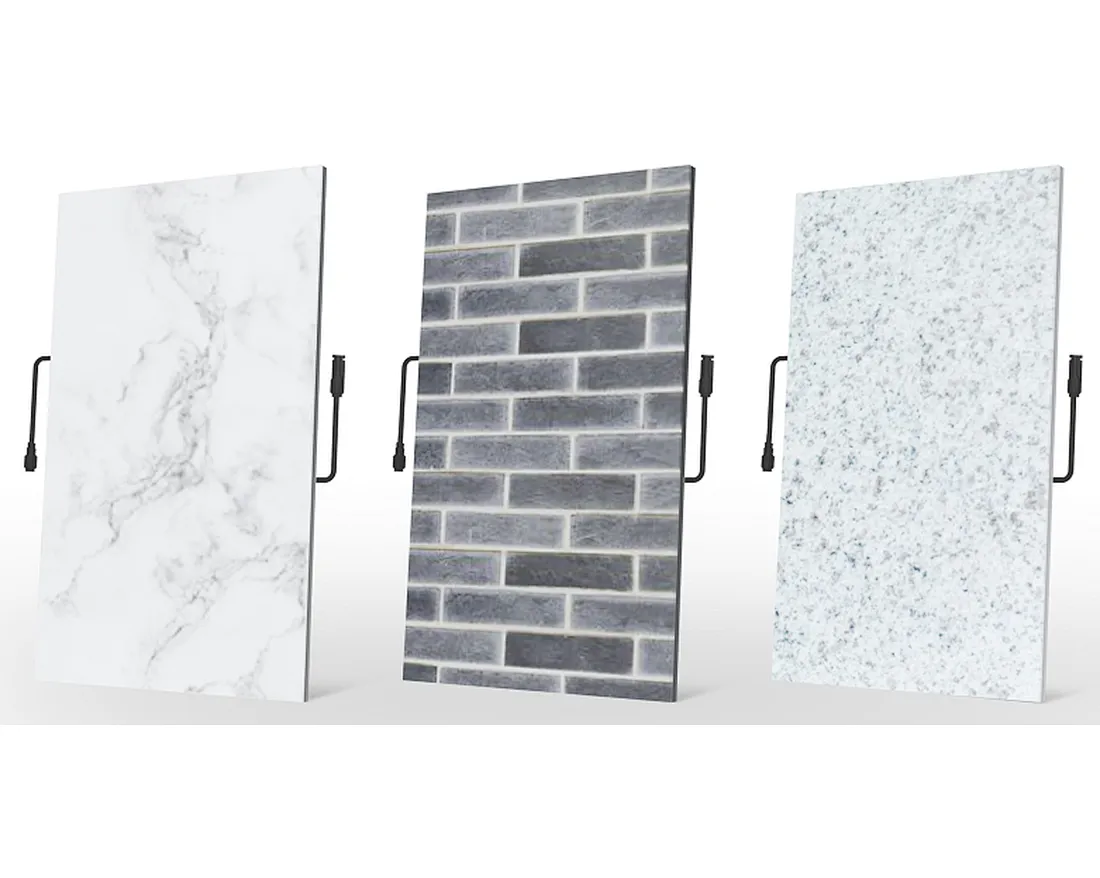

Color Options: The panels come in multiple color options, including black, transparent, and white, to match different architectural designs. Custom colors, such as wood grain or acid-etched glass, can also be chosen for specific needs.
