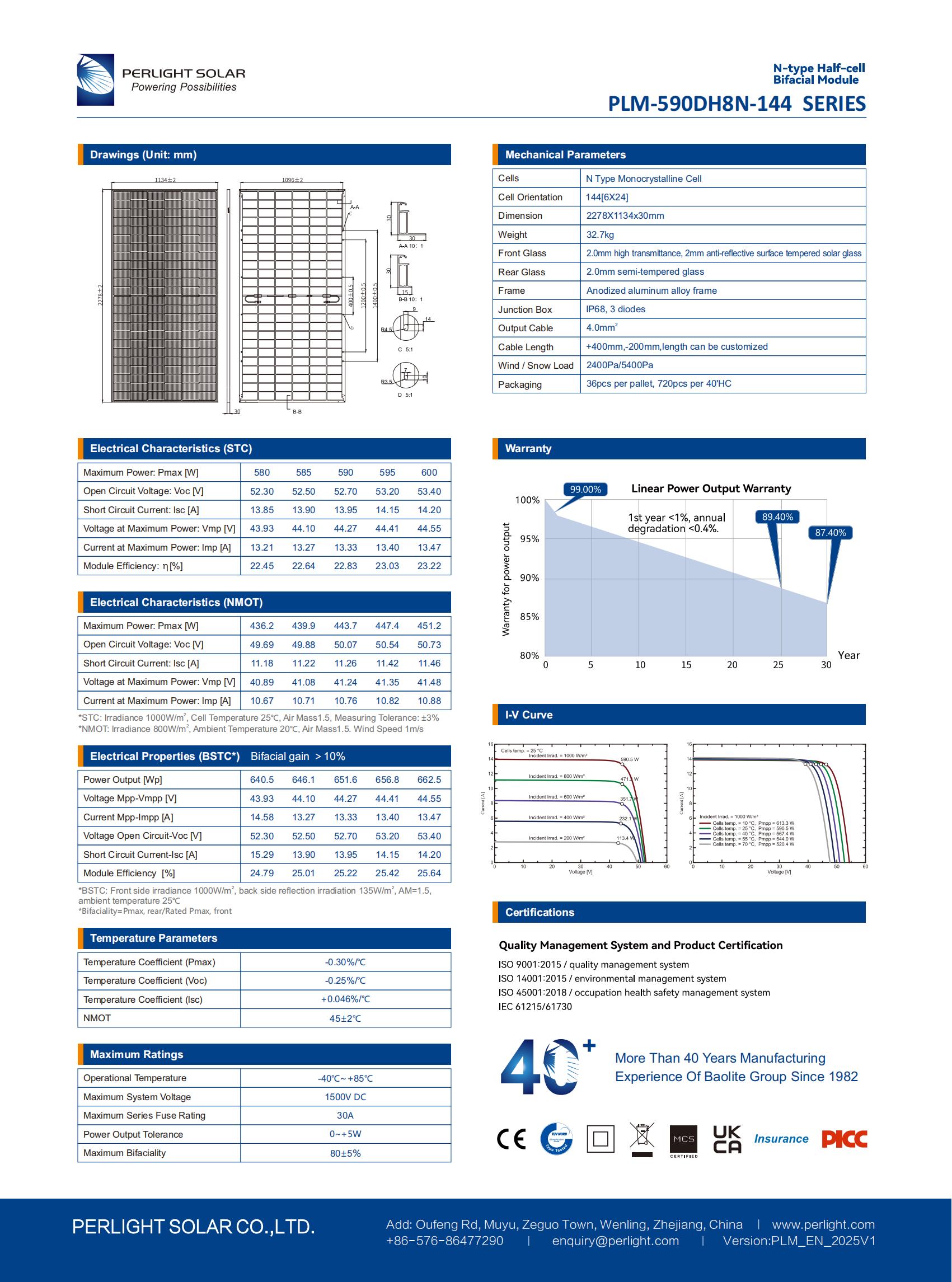

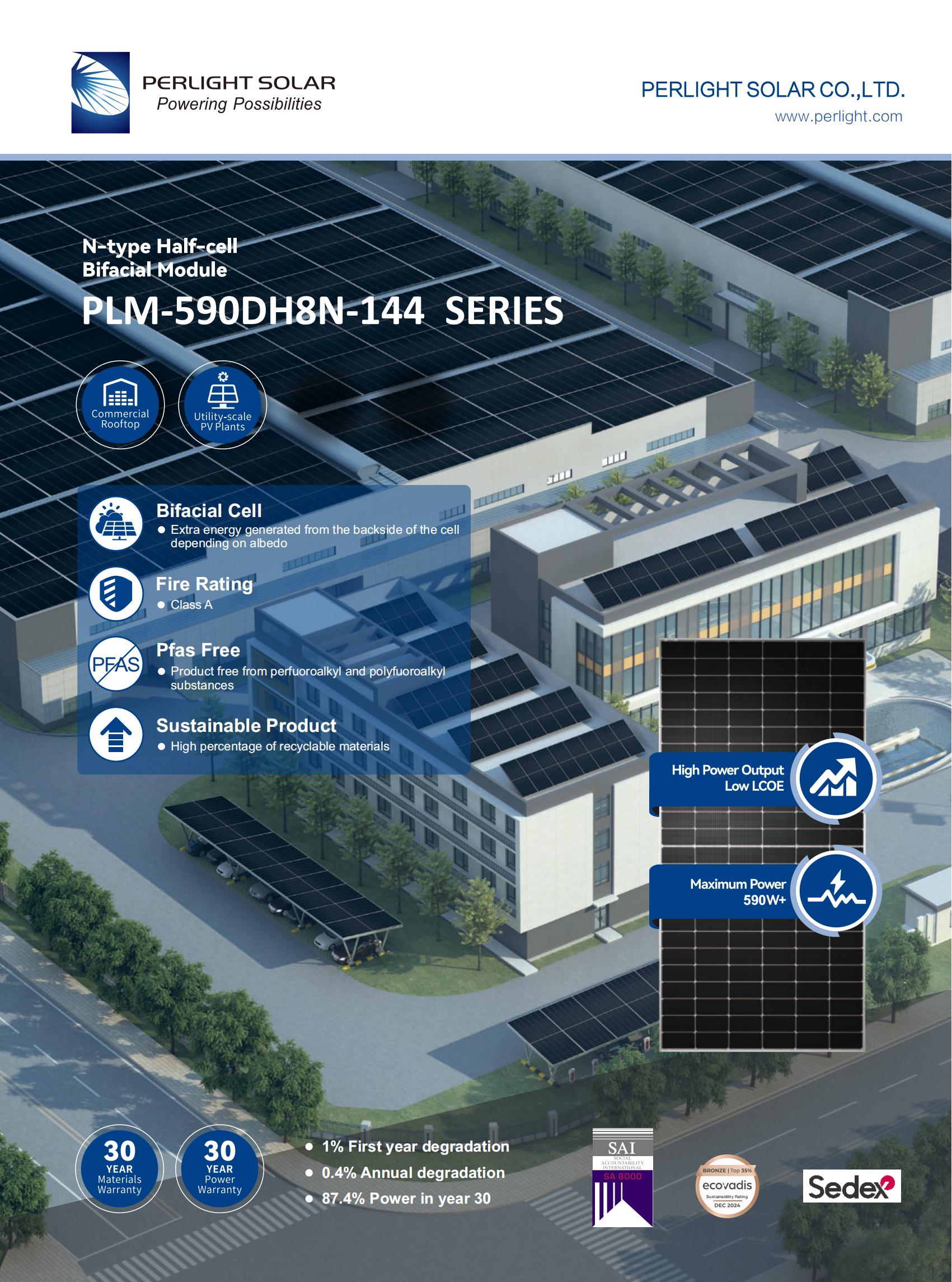

590W Double Glass
PLM-590DH8N-144
182 Half-cell Bifacial Module,2278X1134x30mm,2+2Double Glass,Anodized aluminum alloy frame
Quantity


Scan the QR code to visit the mobile website


| Mechanical Parameters | |
| Cells | N Type Monocrystalline Cell |
| Cell Orientation | 144[6X24] |
| Dimension | 2278X1134x30mm |
| Weight | 32.7kg |
| Front Glass | 2.0mm high transmittance, 2mm anti-reective surface tempered solar glass |
| Rear Glass | 2.0mm semi-tempered glass |
| Frame | Anodized aluminum alloy frame |
| Junction Box | IP68, 3 diodes |
| Output Cable | 4.0mm2 |
| Cable Length | +400mm,-200mm,length can be customized |
| Wind / Snow Load | 2400Pa/5400Pa |
| Packaging | 36pcs per pallet, 720pcs per 40'HC |
| Electrical Characteristics (STC) | |
| Maximum Power:Pmax[W] | 580 585 590 595 600 |
| Open Circuit Voltage:Voc [V] | 52.30 52.50 52.70 53.20 53.40 |
| Short Circuit Current:Isc [A] | 13.85 13.90 13.95 14.15 14.20 |
| Voltage at Maximum Power:Vmp[V] | 43.93 44.10 44.27 44.41 44.55 |
| Current at Maximum Power:Imp [A] | 13.21 13.27 13.33 13.40 13.47 |
| Module Efficiency:η[%] | 22.45 22.64 22.83 23.03 23.22 |
