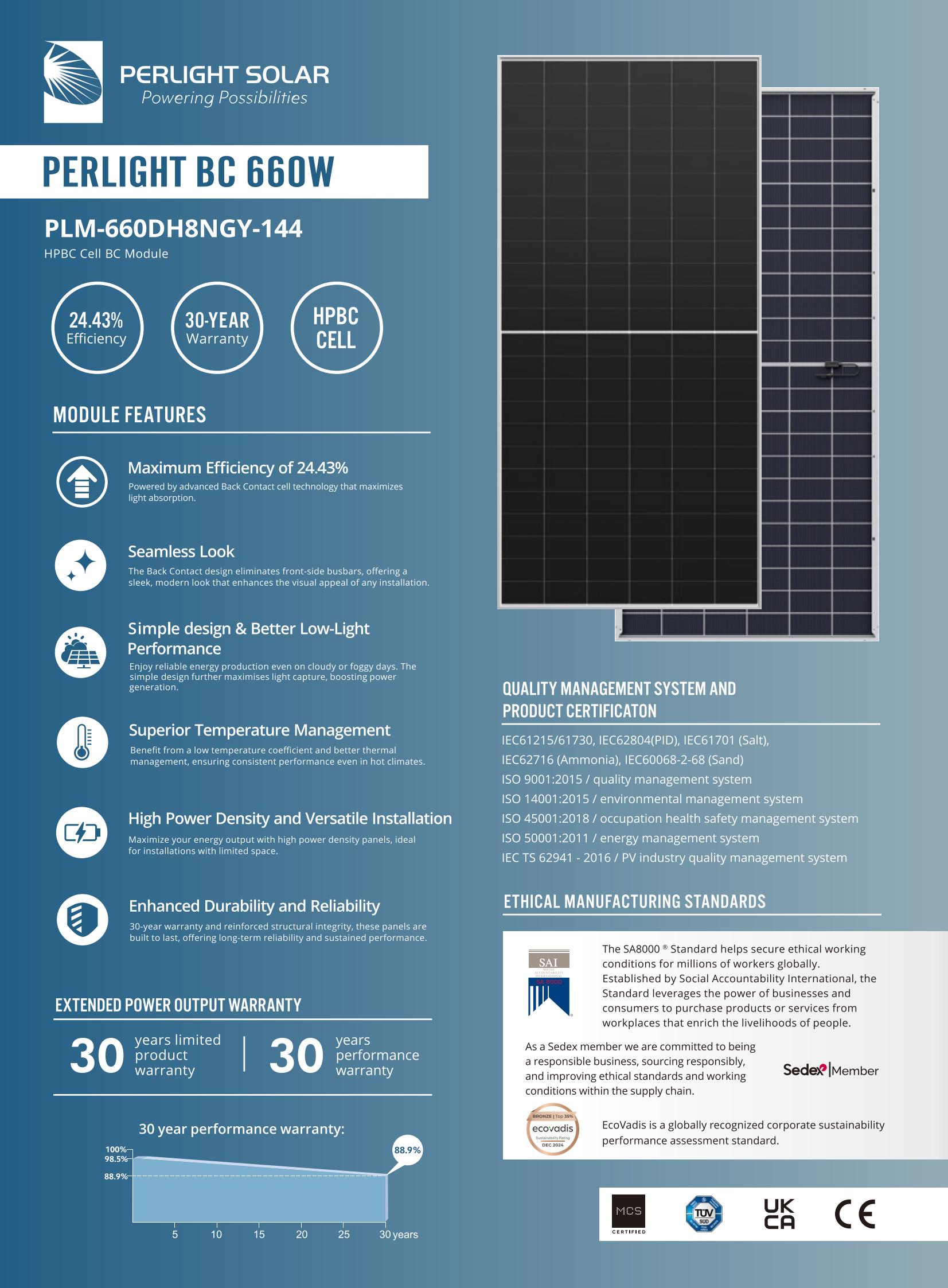

660W Double Glass HPBC
PLM-660DH8NGY-144
HPBC Cell BC Module,Seamless Look,2382 x1134x30 mm,Double glass, 2.0+2.0mm semi-tempered glass,Anodized Aluminium Alloy
Quantity


Scan the QR code to visit the mobile website


| MECHANICAL PARAMETERS | |
| Dimensions | 2382×1134×30 mm |
| Weight | 33.5kg |
| Glass | Double glass,2.0+2.0mm semi-tempered glass |
| Frame | Anodized Aluminium Alloy |
| Cells | Half-Cell HPBC Mono Black |
| Number of Cells | 144(6×24) |
| Junction Box | IP68(3 Diode) |
| Cable | +400mm,-200mm,length can be customized |

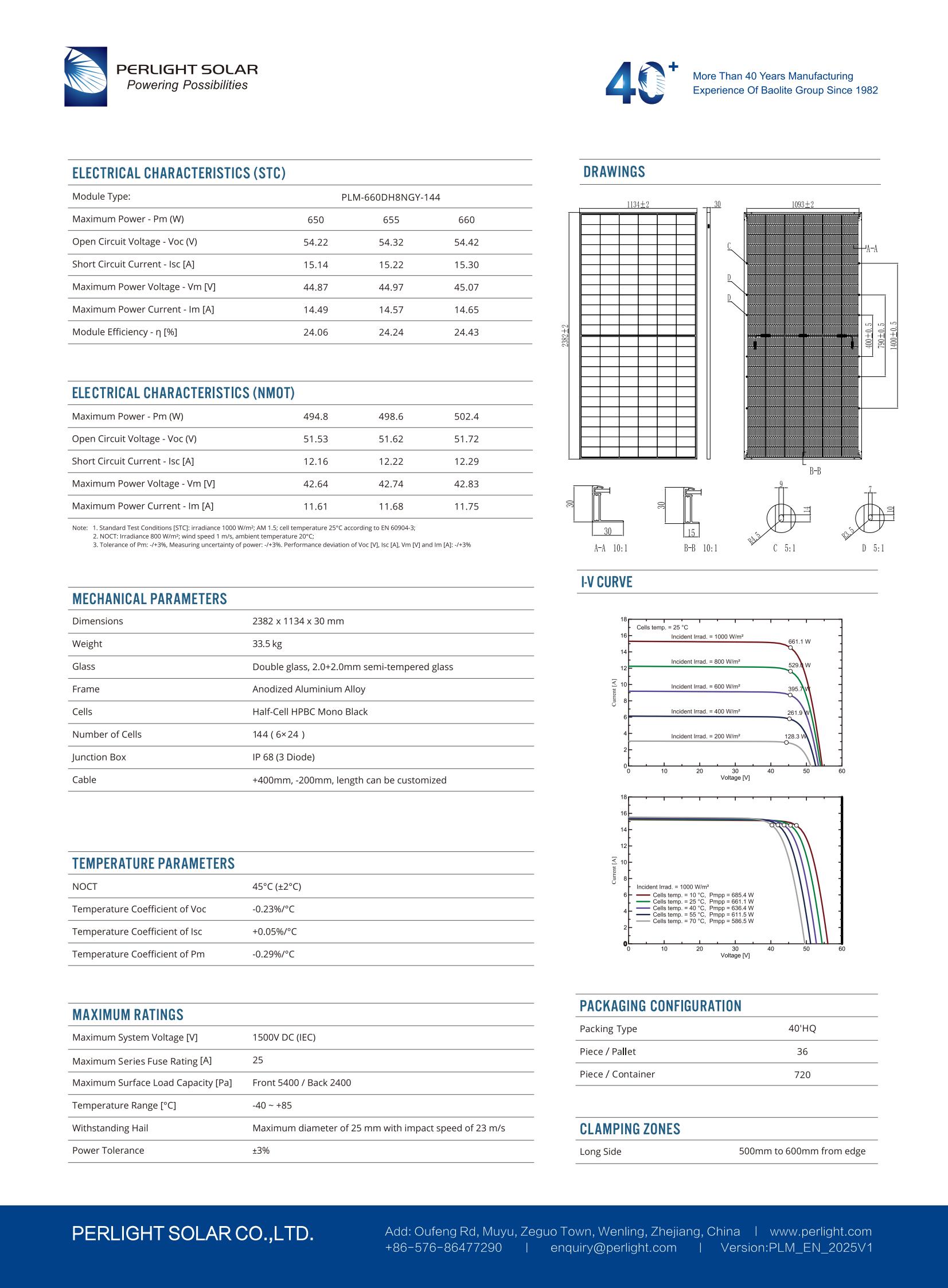

| ELECTRICAL CHARACTERISTICS (STC) | |||
| Module Type: | PLM-660DH8NGY-144 | ||
| Maximum Power -Pm(W) | 650 | 655 | 660 |
| Open Circuit Voltage-Voc(V) | 54.22 | 54.32 | 54.42 |
| Short Circuit Current-Isc [A] | 15.14 | 15.22 | 15.30 |
| Maximum Power Voltage-Vm [V] | 44.87 | 44.97 | 45.07 |
| Maximum Power Current-Im [A] | 14.49 | 14.57 | 14.65 |
| Module Efficiency-η[%] | 24.06 | 24.24 | 24.43 |
