720W Double Glass

PLM-720DH2N-132

210 Half-cell Bifacial Module，Power Range 700W-720W，2384±2 X 1303±2 x 35mm，2+2Double Glass，Anodized aluminum alloy frame

Quantity

粤ICP备12019139号粤公网安备44030502001115号

Sitemap

PERLIGHT'S SOLAR ENERGY SOLUTIONS

POWER A SUSTAINABLE FUTURE WITH

HOME

WESTECH SOLAR (UK)LTD

T:+44(0)1865 682 584

E:sales@westech-solar.co.uk

A: Unit 1, Bobby Fryer Close, Garsington Road, Oxford, UK OX4 6ZN

T:+86 (0)576 864 72 818

M:+86(0)1386 764 8676

E:enquiry@perlight.com

A: 48 Oufeng Road, Muyu Administration District, Wenling, Zhejiang, 317521, China

PERLIGHT MANUFACTORY

PERLIGHT SOLAR UK & EU SALES & CUSTOMER CENTRE

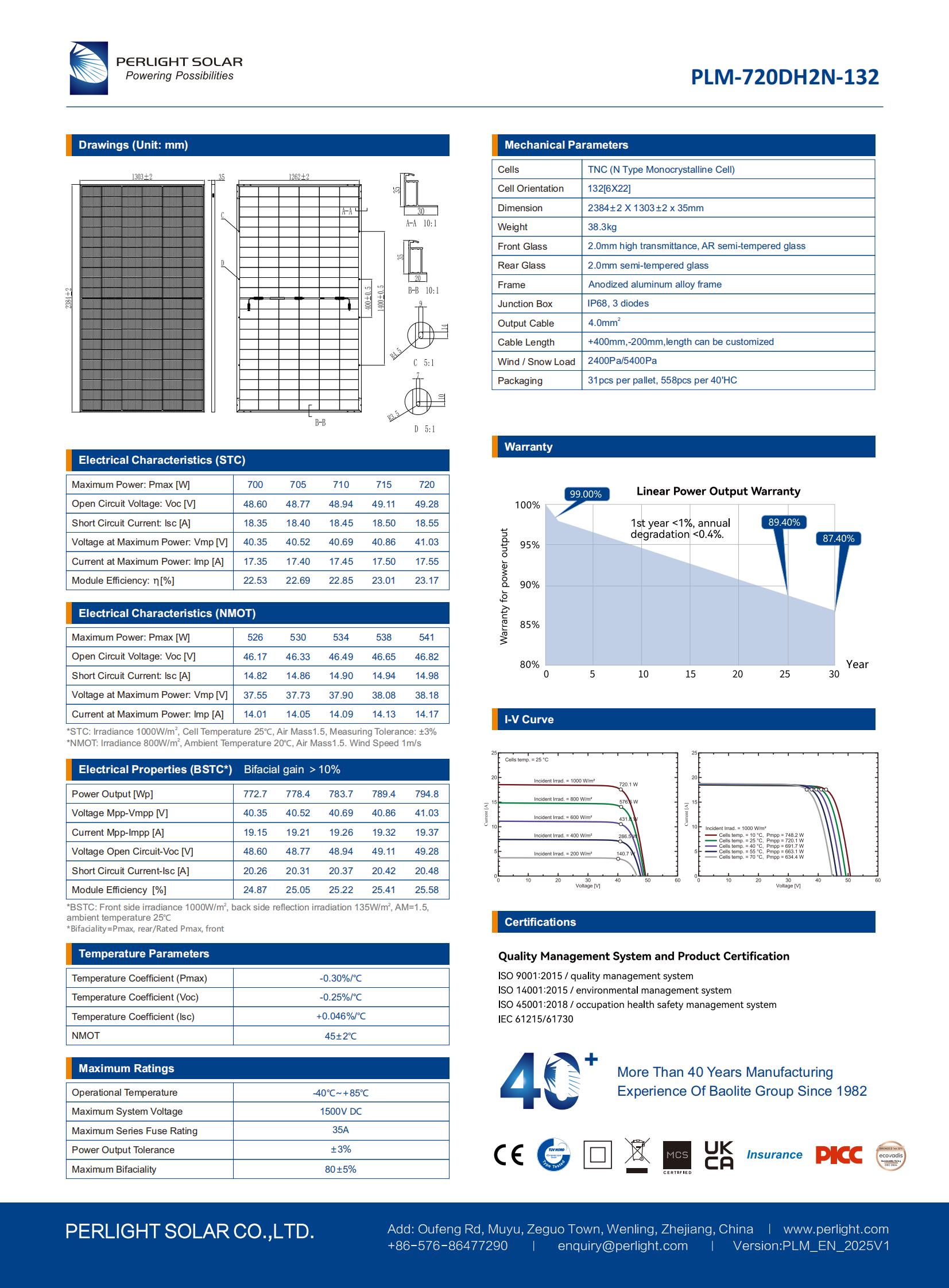

Mechanical Parameters
Cells	TNC(N Type Monocrystalline Cell)
Cell Orientation	132[6X22]
Dimension	2384±2X1303±2x35mm
Weight	38.3kg
Front Glass	2.0mm high transmittance,AR semi-tempered glass
Rear Glass	2.0mm semi-tempered glass
Frame	Anodized aluminum alloy frame
Junction Box	IP68,3 diodes
Output Cable	4.0mm²
Cable Length	+400mm,-200mm,length can be customized
Wind /Snow Load	2400Pa/5400Pa
Packaging	31pcs per pallet,558pcs per 40'HC

Electrical Characteristics (STC)
Maximum Power:Pmax [W]	700	705	710	715	720
Open Circuit Voltage:Voc[V]	48.60	48.77	48.94	49.11	49.28
Short Circuit Current:Isc [A]	18.35	18.40	18.45	18.50	18.55
Voltage at Maximum Power:Vmp[V	40.35	40.52	40.69	40.86	41.03
Current at Maximum Power:Imp [A]	17.35	17.40	17.45	17.50	17.55
Module Efficiency:η[%]	22.53	22.69	22.85	23.01	23.17
